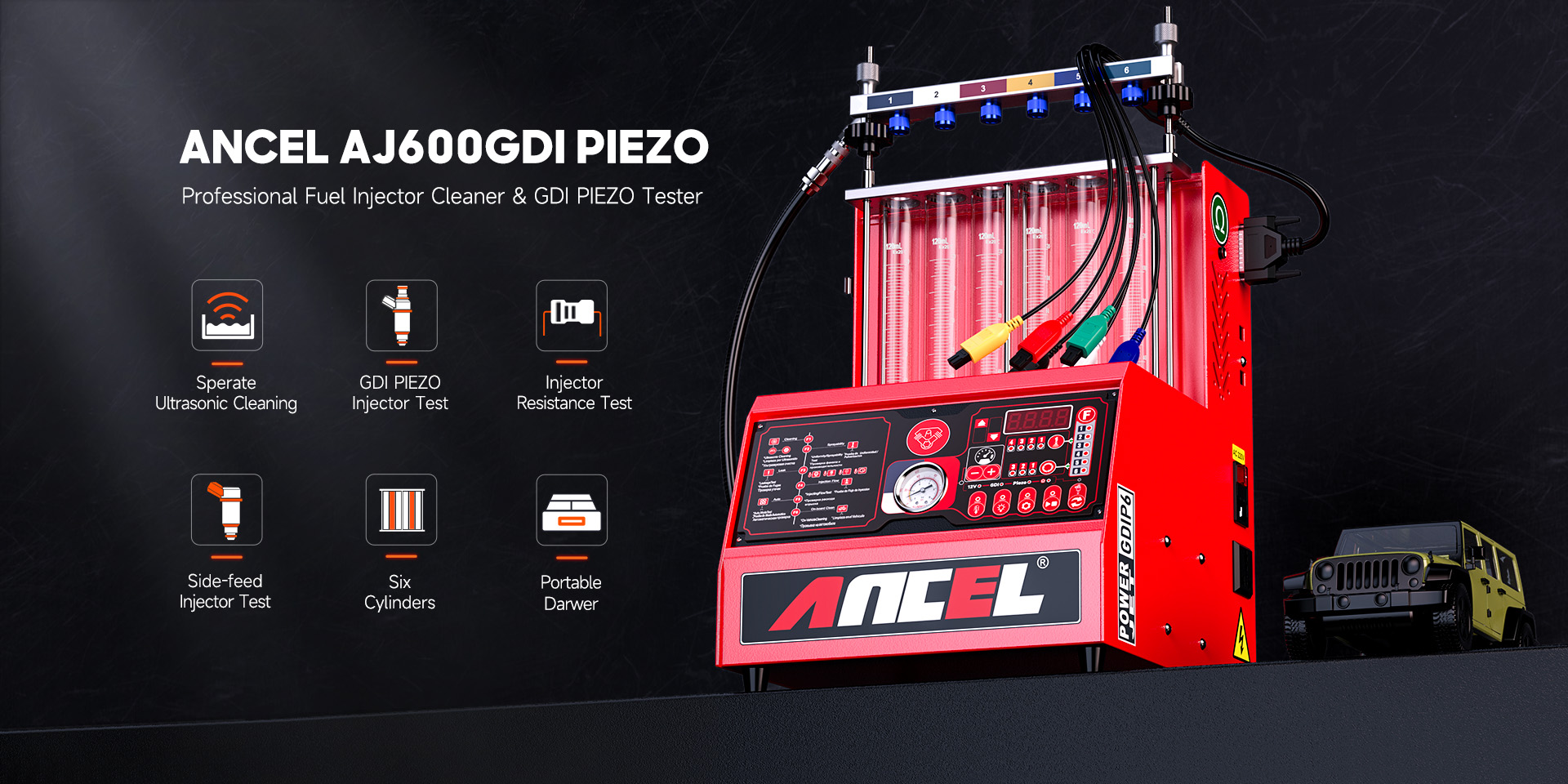

ANCEL AJ600 GDI PIEZO
Description
Specifications
Accessories
Video
Downloads
Specifications
Main unit power supply
AC220V±10% 50Hz/60Hz or AC110V±10% 60Hz
Input power
230W
Ultrasonic cleaner power
100W
Resistance test accuracy
0.1Ω
Simulated RPM range
100～9900rpm, step:10rpm
Time range
5～300s, step:5s
Pulse width
0.1～25ms,step: 0.1ms
Fuel tank capacity
2000 ml
Work pressure
0-7bar
Temperature
-10~+40℃ Relative humidity: ＜85%
Intensity of outer magnetic field
＜400A/m
No naked flame
within 2m
Accessories
Video
Video update soon
Downloads
Upgrade Software
Software update soon
Users Manual
Quick Start Guide
Download
User Manual
Download
Description
Specifications
Main unit power supply
AC220V±10% 50Hz/60Hz or AC110V±10% 60Hz
Input power
230W
Ultrasonic cleaner power
100W
Resistance test accuracy
0.1Ω
Simulated RPM range
100～9900rpm, step:10rpm
Time range
5～300s, step:5s
Pulse width
0.1～25ms,step: 0.1ms
Fuel tank capacity
2000 ml
Work pressure
0-7bar
Temperature
-10~+40℃ Relative humidity: ＜85%
Intensity of outer magnetic field
＜400A/m
No naked flame
within 2m
Accessories
Video
video update soon
Downloads
Upgrade Software
Software update soon
Users Manual
Quick Start Guide
Download
User Manual
Download
