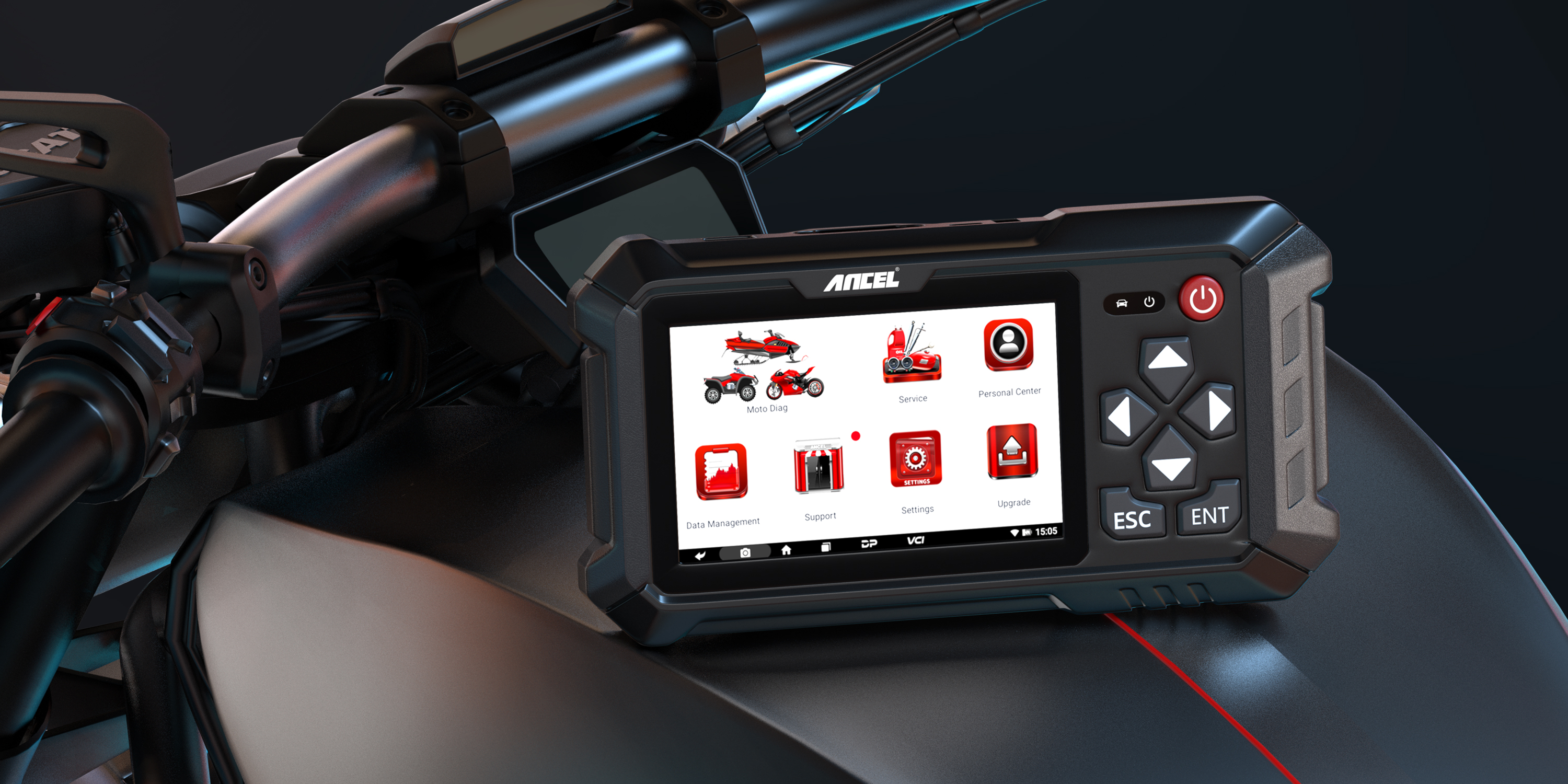

ANCEL MT500 Motorcycle Full System Diagnostic Tools.It is a new vehicle fault diagnosis device based on Android. The motorcycle fault diagnosis of the whole vehicle series and the whole system is realized through the connection of the motorcycle diagnostic seat. The powerful diagnostic function of the equipment can support the electronic control system of mainstream models in Asia, Europe and the United States, covering a wide range of models, powerful functions and accurate diagnostic results. Diagnostic functions include: fault code reading, fault code clearing, data flow reading, special functions, etc.

Specifications

CPU RK3128 Quad-Core, Cortex A7 1.2GHz
Memory Expansion 32G micro SD (TF) card
Display 5.0 inches LCD,800*480
Touch screen Capacitive touch screen
Battery 2600mA, Rechargeable polymer Lithium Battery
WiFi Support Wi Fi wireless Internet access
Operating Temperature -10℃ ~ 55℃ (14℉ ~ 131℉)
Storage temperature -20℃ ~ 70℃ (-4℉ ~ 158℉)
Weight about 1.3kg
Dimension 220mm*116mm*29mm
Screen size 7.0 inches
Storage capacity 13GB

Accessories

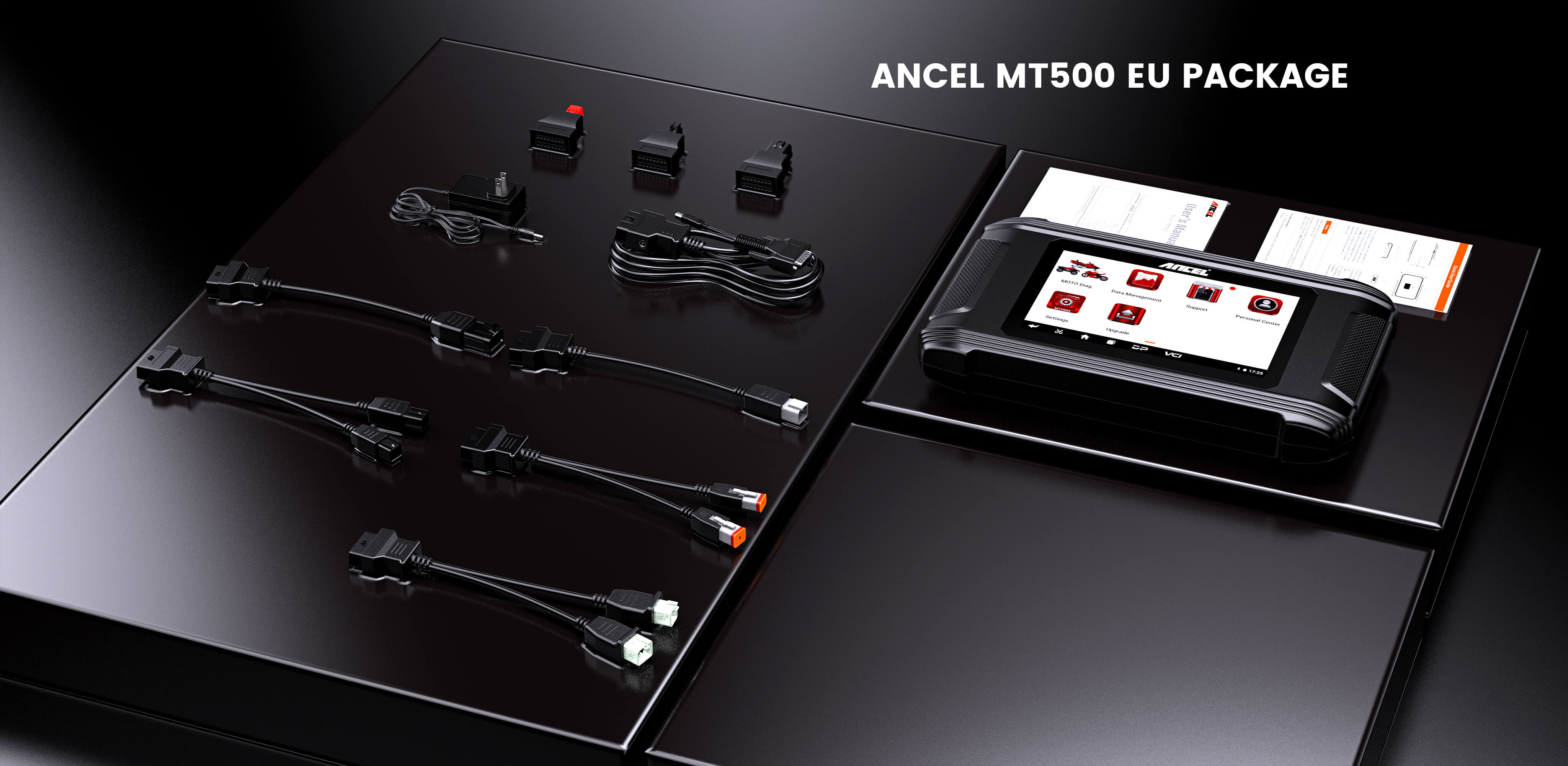

EU PACKAGE

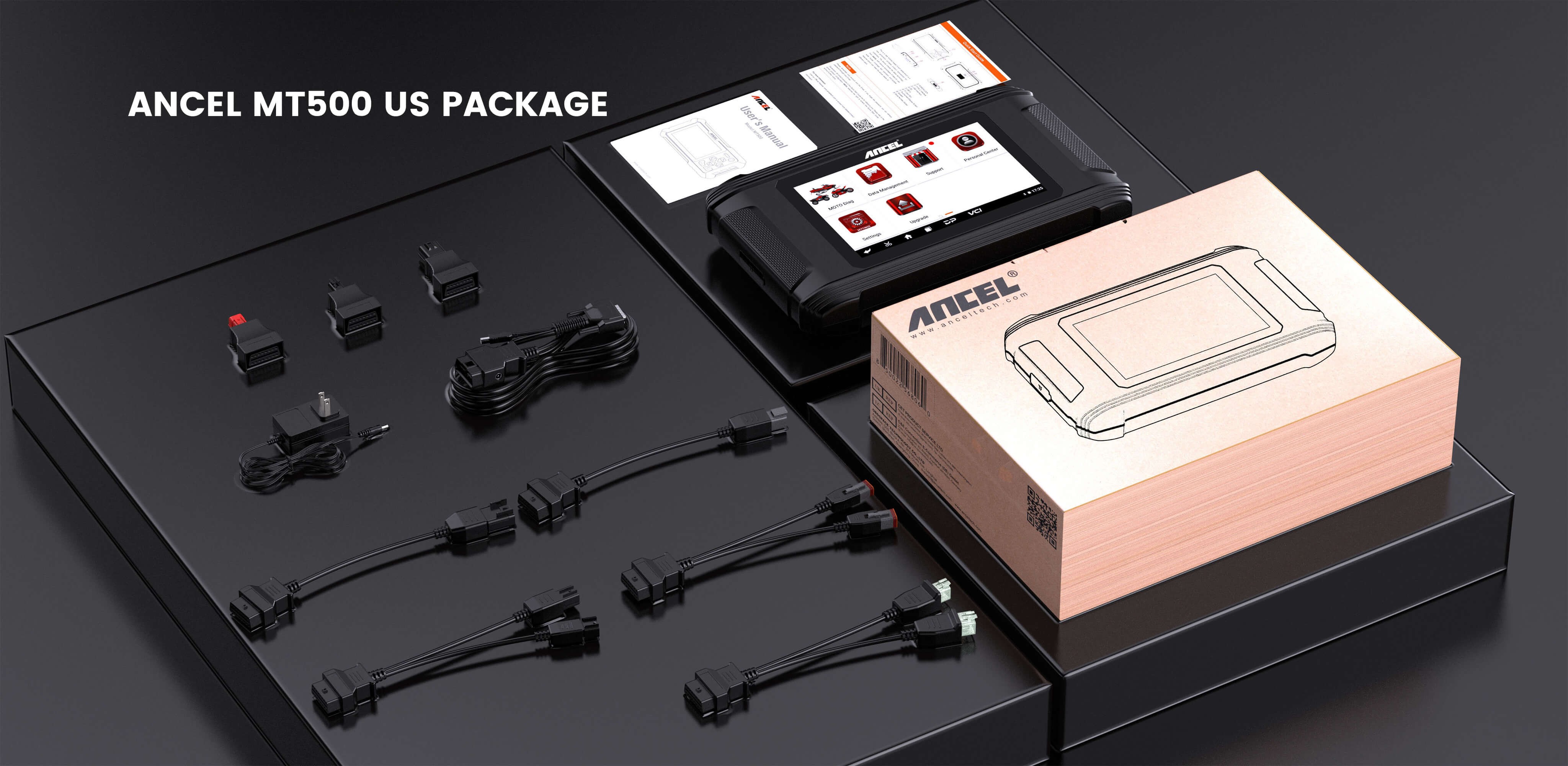

US PACKAGE


Video

Video update soon

Downloads

Upgrade Software
Software update soon
